OEC TRAVELATORS

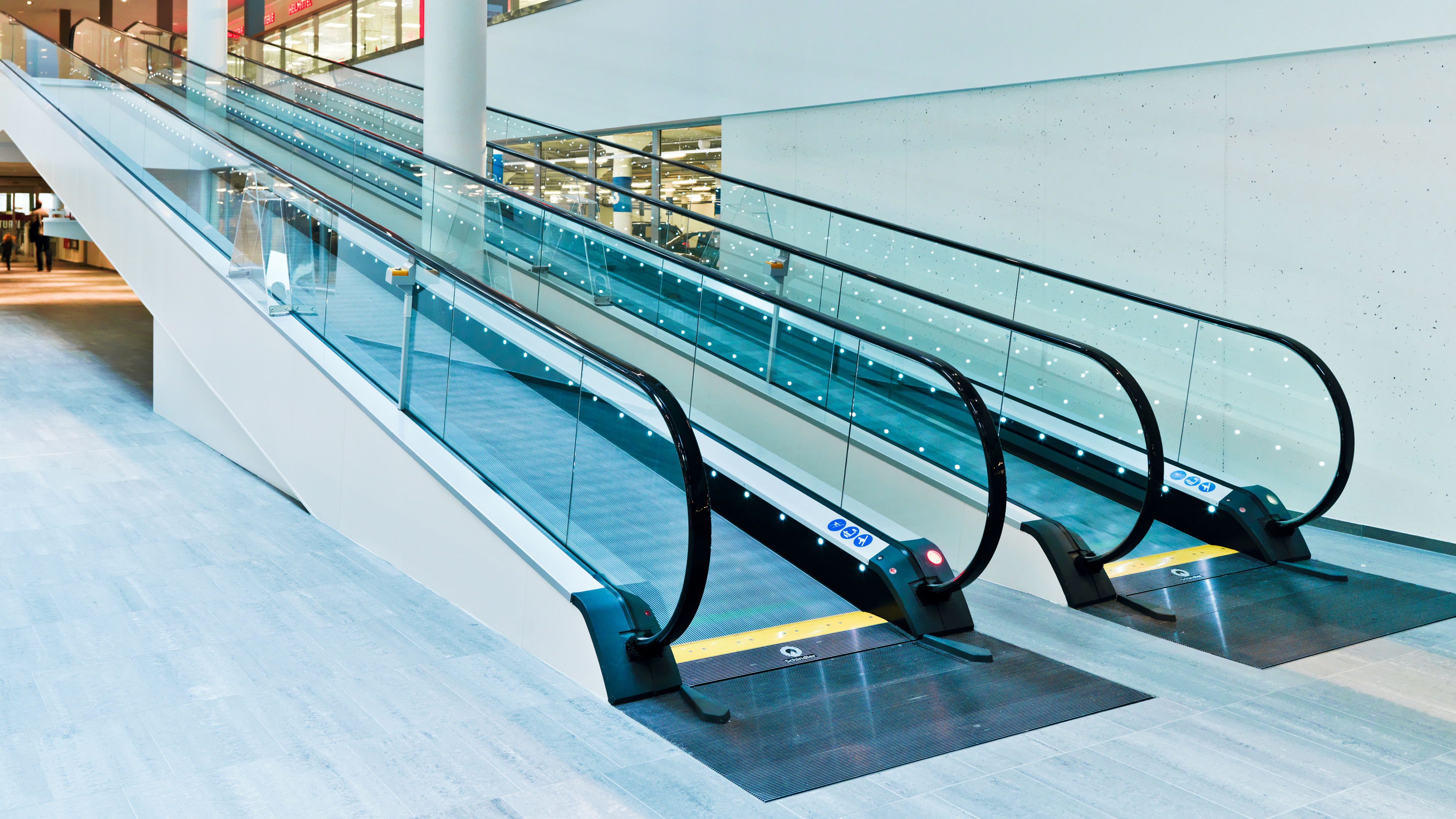

TRAVELATORS (Moving Walkway)

There are several models Of moving walk from OEC, from 0-120, available for consumers choices. They are widely used in all public places, such as markets, stations, docks, airports, shopping malls, entertainment centers, exhibition building, etc, adding remarkable and beautiful moving scenery for your buildings. The advanced technologies and design ideas in the world are adopted in the products, which not only transport a large number of passengers but also deliver baby carriages, shopping carts, wheelchairs, etc. making people feel walking on the flat ground, greatly facilitating people's travel and shopping. With our exquisite structures, superior stairs, fine pedrail ways and elegant uniquely-designed forms, OEC products contribute a lot to the prosperity of the moving world.

Product Details:

Installation place	Indoor / Semi-outdoor / Outdoor
Transit/running time	24 hours per day
Rise Height	1.0 - 15.0m
Inclination	0° / 6° / 10° / 11° / 12°
step width	800 / 1000mm
Upside curvature radius of escalator steps	3500mm
Speed	0.5 m/s
Delivery capacity	4800 / 6000 persons per hour
Power supply	Three phases AC 380V/50HZ (option for 208V˜480V 60HZ)
Lighting power	Single phase AC220V/50HZ (option for 110V 60HZ)

Exterior Design:

Handrail design	Common type/slim type, vertical 10mm tempered glass of high security
Balustrade profile	Aluminum alloy/hairline SS
Handrail	Sulfurized black rubber ring-belt, inserted steel wire rope
Exterior/interior decking	Hairline SS
Skirt panel	Hairline SS
Step	Stainless steel punched forming, black electrophoretic paint
Security sign of Step	Yellow plastic safety line
Landing plate	Rammed antislip stainless-steel (etched stainless steel for option) with black antislip patterns
Operation panel	Red emergency stop button and key switch up and down
